Hi17-5S repeater

€1,799.00
Tax included

Networks : EGSM 900, DCS 1800, 3G 2100, 4G LTE 800&2600

Coverage : up to 1000-1800 square meters

Max.Gain : 65 dB

  • Easy to install and monitor via HiBoost App

  • Inbuilt indoor antenna

  • Fully CE RED Certified

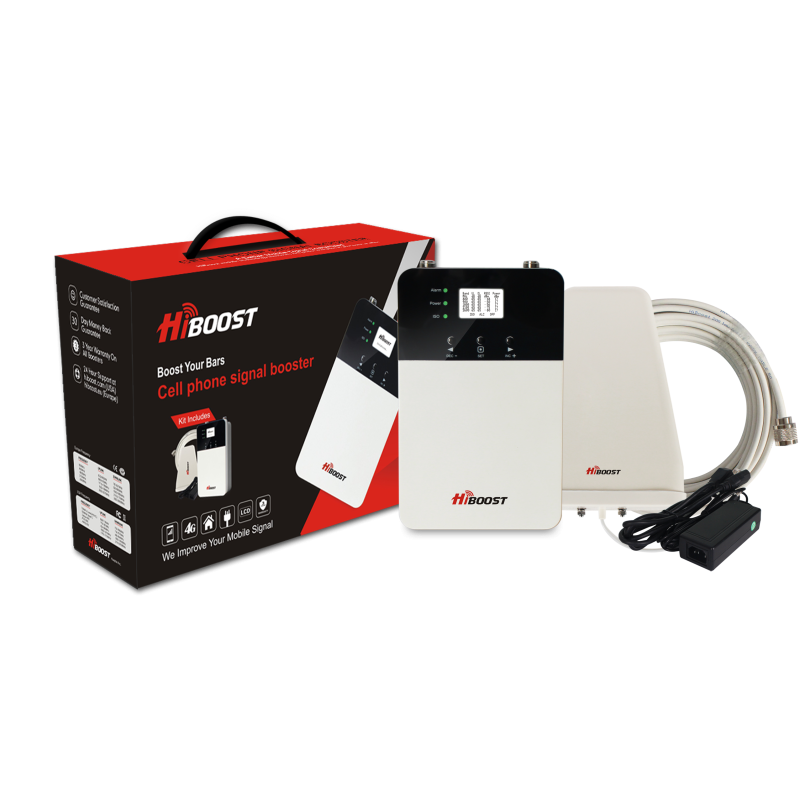

The Hi17-5S mobile signal booster integrates the most powerful consumer boosting technology with a built-in antenna and remote monitoring via a free mobile app. Increase signal in a home or office up to 1000-1800 square meters!

Quantity
In stock, ships in 12 days

TECH SPECS

WORKING BANDS

800, 900, 1800, 2100, 21600 MHz
UL FREQUENCY RANGE

832-862 / 880-915 / 1710-1785 / 1920-1980 / 2500-2570
DL FREQUENCY RANGE

791-821 / 925-960 / 1805-1880 / 2110-2170 / 2620-2690
SUPPORTED STANDARDS

EGSM, WCDMA, DCS, LTE800 and LTE2600
V.S.W.R

Typical≤2
MAXIMUM GAIN

65 db
MGC (STEP ATTENUATION)

≥ 31 db/ 1 db step
INTELLIGENT AGC

ALC ≥42dB
ISO ≥42dB
GAIN FLATNESS

Typical≤5dB (p-p)
NOISE FIGURE @ MAX. SYSTEM GAIN

Typical≤5dB
GROUP DELAY

≤1μs
FREQUENCY STABILITY

≤0.01ppm
POWER SUPPLY

Input AC 100~264 V, 50/60 Hz, Output DC 12V/3A
POWER CONSUMPTION

≤12W
IMPEDANCE

50 ohm
LCD DISPLAY

Frequency, Gain, Output Power, ALC, ISO indicators
I/O PORT

N-Female
DIMENSIONS

153 mm×246 mm×36 mm/ 6 in×9.7 in ×1.4 in
BOOSTER WEIGHT

≤3.97lbs/1.8KG
BOOSTER KIT WEIGHT

5 KG
OPERATING TEMPERATURE

-10ºC~+55ºC
STORAGE TEMPERATURE

-10ºC~+80ºC
RELATIVE HUMIDITY

5% – 95%
BAROMETRIC PRESSURE

55 kPa -106 kPa
ENVIRONMENT CONDITION

IP40
